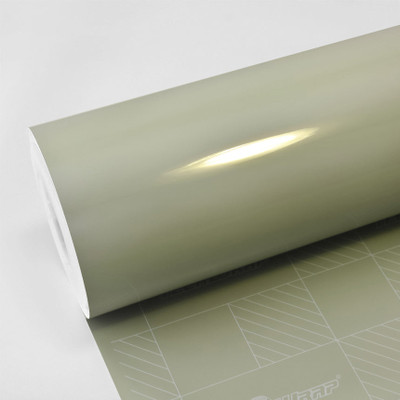

Vibrant Moss Green Vinyl Wrap Overview
The Moss Green (CG23-HD) is a gloss vinyl wrap by TeckWrap for full-vehicle wrapping, with a 110 µm film and a 142 µm plastic release liner. Best for smooth and medium curved surfaces. The top PET protective layer guards the film during installation and must be peeled off before heating.
CG23-HD Moss Green Film Technical Details
The thickness of the film(um): 110
The thickness of the release liner(um): 142
Type of film: High-grade polymeric calendered film with air release
Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 µm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Durability/Warranty: Datasheet (Click the link)
Release force (N/25mm): Standart: 0.10-0.30, Result:0,18 (23°C,54%H)
Initial Tack(g/25mm): Testing method: GB31125-2014: Standart 800-1500, Result: 1015 (23°C,54%H)
180° Peel strength (N/25mm): Testing Method: GB/T2792-1998: Standart =4.9, Result: 8,1 (23°C,54%H)
Adhesion strength: Testing method: GB/T4851-1998, Standart =60, Result 70 (No shifting)
Aging (65°C, seven days): Standart - High-temperature release without adhesive residue, result: no adhesive residue
Aging (-65°C, ten days): Standart - Low-temperature release without adhesive residue, result: no adhesive residue
Package: Roll width 152 cm, length 18 or 23m
Install tips:
Application: from +16°C to +18°C, usage from -30°C to +45°C
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Directional: no
Overlap width: 3-4mm
Post heating: 95 Celcius
The protective cap should be peeled off before installation.
Important note: The screen's images, colors, and finishes are approximate. For the real representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job, as a slight batch-to-batch variation of color may occur. The film may scratch during the application or a day in and out use. The warranty does not cover the scratching of the film.
Questions about Moss Green (CG23-HD)
What is the film thickness of Moss Green (CG23-HD)?
The film is 110 µm thick, with a 142 µm release liner.
Does Moss Green (CG23-HD) have air-release channels?
Yes. The film has air-release channels, which help achieve a smooth, bubble-free application.
What surfaces suit Moss Green (CG23-HD)?
Conformability is rated for smooth and medium curved surfaces.
What roll size does Moss Green (CG23-HD) come in?
Roll width is 152 cm. Choose your roll length in the Roll Length option on this page.
CG23 HD Moss Green Super High Gloss
Modern and Clean Finish
“This wrap gives the vehicle a modern and sophisticated appearance.”
Looks Amazing Outdoors
“The green color shines beautifully outdoors and changes nicely in different lighting.”
Perfect for Full Vehicle Wraps
“Used it for a complete wrap and the transformation exceeded expectations.”
Easy to Work With
“The air-release technology made installation much easier and cleaner.”
Professional Final Result
“The finished wrap looked professionally installed and extremely smooth.”
Luxury Appearance
“The Moss Green tone gives the car a luxury custom-built look.”
Excellent Material Quality
“The wrap feels durable and professional-grade. Very impressed with the quality.”
Unique and Stylish
“This green shade stands out while still looking elegant and refined.”
Premium Gloss Finish
“The glossy finish gives the wrap a clean and high-end appearance.”
Smooth Installation
“The vinyl was easy to apply and handled curves and corners very well.”
Natural Deep Green
“The Moss Green color looks rich, natural, and incredibly classy on my vehicle.”
