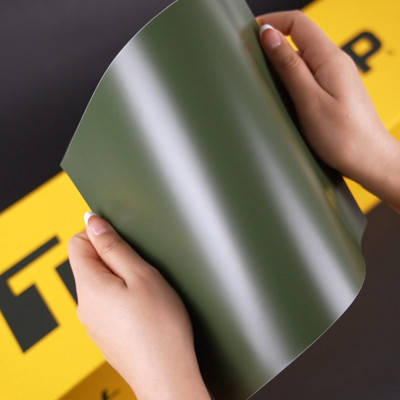

Piniengruen Pearl (TC02) Vinyl Wrap

Discover the Piniengruen Pearl Vinyl Wrap

With a collection of four solid colors, TeckWrap offers you this series of super matte vinyl wraps, which gives your vehicle a subtle-looking finish. As a proud supplier, TeckWrap has plenty of film selections with good conformability and durability. The material is stretchable enough to wrap every edge and recessed area easily.

Film Structure & Features

The thickness of the film: 0.12mm
The thickness of film with release liner: 0.28mm
Type of film: Medium-grade polymeric calendared film with air-release channels

Series: 180 series

Adhesive: Henkel solvent-based acrylic adhesive, transparent, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 ?m dry
Release liner: Felix Schoeller Release Liner / 20-104-20-1,9 printed, double side PE coated Kraft. One side solventless silicone-coated, air release (ISO 9001, ISO 140001, OHSAS 18001)
Storing period:  3 years if stored in +10?? to +20??, relative humidity 50%, in original package, away from direct sunlight, clean and dry place.
Durability/Warranty: ?Datasheet (Click the link)
Dimensional stability: shrinkage less than 0,20%
Plastification: between 25%-32%
Breaking Strength: 30.7 N/10mm (Average) Test Method: ASTM D3759/D3759M-05180? Peel Strength, to steel panel: 9 N/10mm (Average) Test Method: ASTM D3330/D3330-04

Light Ageing in UV Exposure:
Test Method ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005, Test result: 4-5 / Exposure cycle: ASTM D4329-13 cycle A, Lamp type: UVA-3408h UV at (60?2.5)? BPT, 0.89 W/(m2?m)@340nm, 4h condensation at (50?2.5)? BPT, Exposure duration: 48h

Install tips:

Temperature: from +18?? to 20??, usage from -30?? to +30??
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Directional: yes
Overlap width: 3-4mm

Package: Roll width 152 cm, length 18 m, weight 13 kg

The protective cap should be peeled off before installation.

Important note: The screen's images, colors, and finishes are approximate. For the real representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job, as a slight batch-to-batch variation of color may occur. The film may scratch during the application or a day in and out use. The scratching of the film is not covered by the warranty.
