Vintage Grey Gloss HD Vinyl Wrap

TeckWrap Vintage Grey is the wrap of conformity and adaptability, flexible for all occasions. It's the right color for the always dependable.

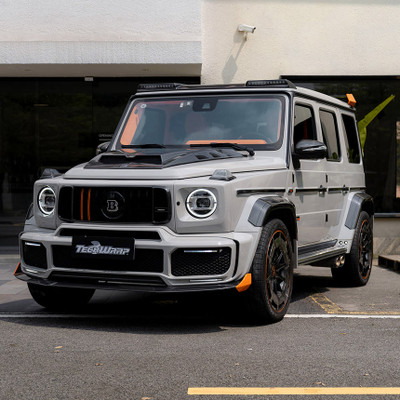

The Vintage Grey (CG47-HD) is a gloss vinyl wrap by TeckWrap for full-vehicle wrapping, with a 110 µm film and a 142 µm plastic release liner. Best for smooth and medium curved surfaces. The top PET protective layer guards the film during installation and must be peeled off before heating.

High-Grade Film Specifications

The thickness of the film(um): 110
The thickness of the release liner(um): 142
Type of film: High-grade polymeric calendered film with air release

Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 µm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, in a clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Durability/Warranty: Datasheet(Click the link)

Release force (N/25mm): Standart: 0.10-0.30, Result:0,18 (23°C,54%H)

Initial Tack(g/25mm): Testing method: GB31125-2014: Standart 800-1500, Result: 1015 (23°C,54%H)

180° Peel strength (N/25mm): Testing Method: GB/T2792-1998: Standart =4.9, Result: 8,1 (23°C,54%H)

Adhesion strength: Testing method: GB/T4851-1998, Standart =60, Result 70 (No shifting)

Aging (65°C, seven days): Standart - High-temperature release without adhesive residue, result: no adhesive residue

Aging (-65°C, ten days): Standart - Low-temperature release without adhesive residue, result: no adhesive residue

Package: Roll width 152 cm, length 18 or 23m

Install tips:

Application: from +16°C to +18°C, usage from -30°C to +45°C
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Directional: no
Overlap width: 3-4mm

Post heating: 95 Celcius

The protective cap should be peeled off before installation.

Important note: The screen's images, colors, and finishes are approximate. For an accurate representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job, as a slight batch-to-batch variation of color may occur. The film may scratch during the application or a day in and out use. The warranty does not cover the scratching of the film.
