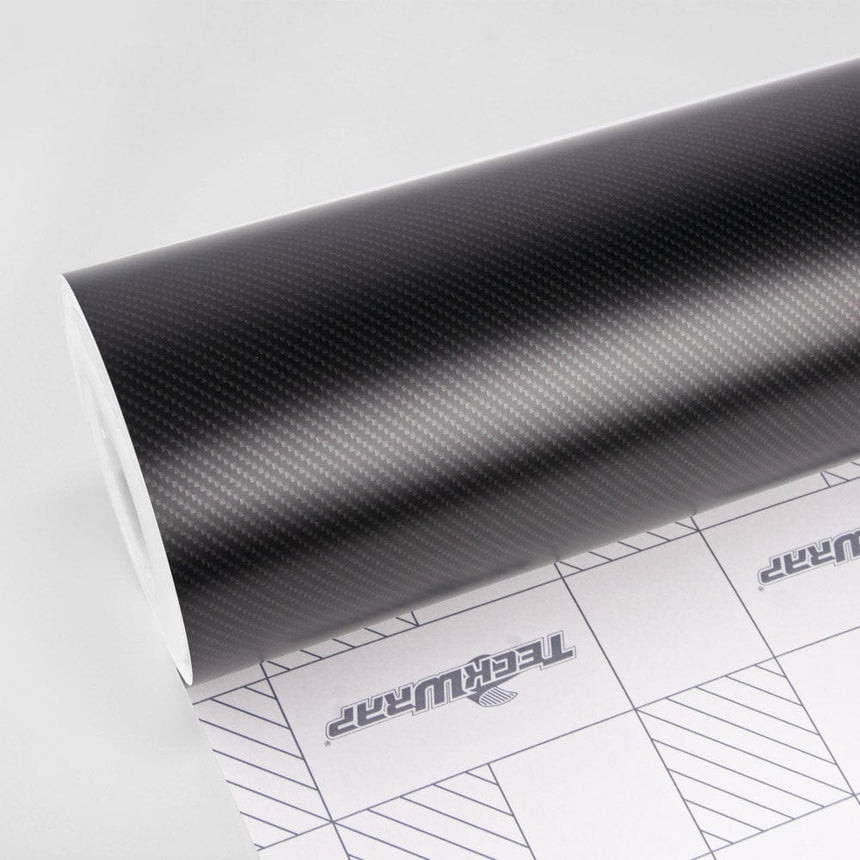

Matte Ceramic Carbon Vinyl Wrap

TeckWrap Matte Ceramic Carbon is black with style. It’s a perfect add-on for all customizations. Add an extra layer to spice up your design now.

With a collection of different styles, TeckWrap offers you this carbon fiber series that gives your vehicle a stylish finish with a genuine look. As a proud supplier, TeckWrap has many film selections with good conformability and durability. The material is stretchable enough to wrap every edge and recessed area easily. Designed for interior and exterior applications.

Polymeric Film Specifications

Reliable polymeric PVC for partial application. Designed for wrapping smooth surfaces or elements of medium difficulty in wrapping: spoilers, mirrors, etc.

The thickness of the film is 0.13mm
The thickness of film with release liner: 0.29mm
Type of film: High-grade polymeric calendered vinyl film with air release channels
Colors: Black

Series: 180 series
Adhesive: Henkel solvent-based acrylic adhesive, transparent, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 µm dry
Release liner: Felix Schoeller Release Liner / 20-104-20-1,9 printed, double side PE coated Kraft. One side solventless silicone-coated, air release (ISO 9001, ISO 140001, OHSAS 18001)
Storing period: 2 years if stored in +10°? to +20°?, relative humidity 50%, in original package, away from direct sunlight, in a clean and dry place.
Durability/Warranty: ?Datasheet (Click the link)
Application: from +5°? to +30°?, usage from -30°? to +45°?
Dimensional stability: shrinkage of less than 2%
Plastification: between 28%-38%
Breaking Strength: 23.7 N/10mm (Average) Test Method: ASTM D3759/D3759M-05 6.4 N/10mm (Average) Test Method: ASTM D3330/D3330-04
Light Ageing in UV Exposure: Test Method: ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005, Test result: 3-4 Exposure cycle: ASTM D4329-13 cycle A, Lamp type: UVA-340 8h UV at (60±2.5)? BPT, 0.89 W/ (m2•nm)@340nm, 4h condensation at (50±2.5)? BPT, Exposure duration: 44h

Post-heating: 95 Celsius

Package: Roll width is 152, length 18 m, weight 14 kg
