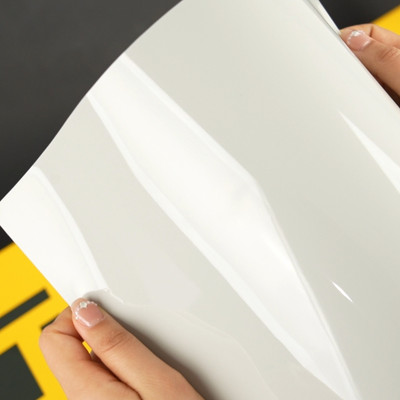

Pale Celadon (CG30-HD) Vinyl Wrap

Perfect Balance with Pale Celadon Wrap

TeckWrap Pale Celadon is the color of ice and rock, natural enough to bring perfect balance. Wrap now to enjoy a new life that's easy to live by.

The Pale Celadon (CG30-HD) is a gloss vinyl wrap by TeckWrap for full-vehicle wrapping, with a 110 µm film and a 142 µm plastic release liner. Best for smooth and medium curved surfaces. The top PET protective layer guards the film during installation and must be peeled off before heating.

Technical Film Data & Durability

The thickness of the film(um): 110
The thickness of the release liner(um): 142
Type of film: High-grade polymeric calendered film with air release

Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 µm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, in a clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Durability/Warranty: Datasheet (Click the link)

Release force (N/25mm): Standart: 0.10-0.30, Result:0,18 (23°C,54%H)

Initial Tack(g/25mm): Testing method: GB31125-2014: Standart 800-1500, Result: 1015 (23°C,54%H)

180° Peel strength (N/25mm): Testing Method: GB/T2792-1998: Standart =4.9, Result: 8,1 (23°C,54%H)

Adhesion strength: Testing method: GB/T4851-1998, Standart =60, Result 70 (No shifting)

Aging (65°C, seven days): Standart - High-temperature release without adhesive residue, result: no adhesive residue

Aging (-65°C, ten days): Standart - Low-temperature release without adhesive residue, result: no adhesive residue

Package: Roll width 152 cm, length 18 or 23m

Install tips:

Application: from +16°C to +18°C, usage from -30°C to +45°C
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Directional: no
Overlap width: 3-4mm

Post heating: 95 Celcius

The protective cap should be peeled off before installation.

Important note: The screen's images, colors, and finishes are approximate. For an accurate representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job, as a slight batch-to-batch variation of color may occur. The film may scratch during the application or a day in and out use. The warranty does not cover the scratching of the film.

Questions about Pale Celadon (CG30-HD)

What is the film thickness of Pale Celadon (CG30-HD)?

The film is 110 µm thick, with a 142 µm release liner.

Does Pale Celadon (CG30-HD) have air-release channels?

Yes. The film has air-release channels, which help achieve a smooth, bubble-free application.

What surfaces suit Pale Celadon (CG30-HD)?

Conformability is rated for smooth and medium curved surfaces.

What roll size does Pale Celadon (CG30-HD) come in?

Roll width is 152 cm. Choose your roll length in the Roll Length option on this page.
